Rau cov neeg yuav khoom thoob ntiaj teb uas nrhiav rau
Chassis Partsrau lub tsheb hnyav hnyav, Tuam Tshoj cov chaw tsim khoom thiab cov chaw muag khoom Skyond yog qhov kev txiav txim siab zoo. Peb cov khoom kab npog cov khoom ncua kev kawm ntawv, kev sib txuas ntawm cov kauj vab, cov khoom sib dhos, thiab cov qauv tsim rau Sinotruk thiab Shacman tsheb thauj khoom. Peb kuj muab complementary
Tsheb Yam suav nrog
GearboxCheebtsam thiab lub cav qhov chaw los txhawb kev tu lub tsheb kom tiav. Cov khoom raug xa tawm thoob ntiaj teb mus rau Russia, Africa, Southeast Asia, Central Asia, thiab lwm thaj chaw thoob ntiaj teb. Tag nrho cov khoom yog tsim nyob rau hauv peb tus kheej qhov chaw raws li IATF 16949 certified zoo tswj, nrog high-precision fabrication rhiav, hydraulic xovxwm kab, thiab neeg hlau vuam chaw nres tsheb kom zoo ib yam.
Txhua Chassis Parts yog tsim thiab batch-tested rau OEM txheej txheem cov qauv, nrog meej parameter txuam, siab haum raug, muaj zog durability, thiab ruaj khov installation kev ua tau zoo - zoo tiv thaiv rework thiab haum teeb meem. Peb qhov chaw paub tab sib piv cov kws tshaj lij ua rau muaj qhov sib txawv ntawm cov qauv tsheb xyoo thiab cov qauv sib txawv, nrog nrawm nrawm rau ob qho tib si tus qauv thiab qhov nyuaj-nrhiav. Nrog cov khoom lag luam muaj txiaj ntsig zoo thiab cov khoom lag luam ruaj khov rau lub sijhawm, peb muab lub sijhawm ntev, txhim khu kev qha ib-nres hnyav Qhov chaw muab rau cov khw kho, thauj nkoj, thiab cov khoom xa tawm. Peb cov txheej txheem zoo tau lees paub raws li ISO 9001: 2000 thiab IATF 16949.
Dab tsi yog Chassis Parts?
Chassis Parts xa mus rau cov txheej txheem tseem ceeb thiab cov khoom siv kho tshuab uas tsim lub hauv paus ntawm lub tsheb thauj khoom hnyav. Qhov no suav nrog lub kaw lus ncua kev kawm ntawv, lub kauj tsheb sib dhos, axles, thiab ncej mounts. Cov khoom no yog lub luag haujlwm rau kev txhawb nqa lub tsheb thauj khoom, nqus txoj kev poob siab, thiab ua kom muaj kev tswj xyuas meej, ua rau lawv tseem ceeb rau kev ua haujlwm nyab xeeb thiab kev tsav tsheb.
Chassis Qhov Systems
Chassis muab los ntawm Skyond npog cov tsheb hauv qab no:
|
Qhov system
|
Cov Cheebtsam suav nrog
|
| Qhov System Suspension |
Nplooj springs, shock absorbers, thrust rods, tshuav shafts, ncua kev kawm ntawv brackets |
| Steering Qhov system |
Steering gears, steering twj tso kua mis, steering knuckles, khi rods, drag links, pob pob qij txha |
| Axle Qhov system |
Pem hauv ntej thiab nram qab qag, qag vaj tse, log hubs, qag shafts |
| Ncej Qhov system |
Ncej rails, crossmembers, dabtsi yog khoov beams, cav mounts, fender brackets |
| Nres Qhov system |

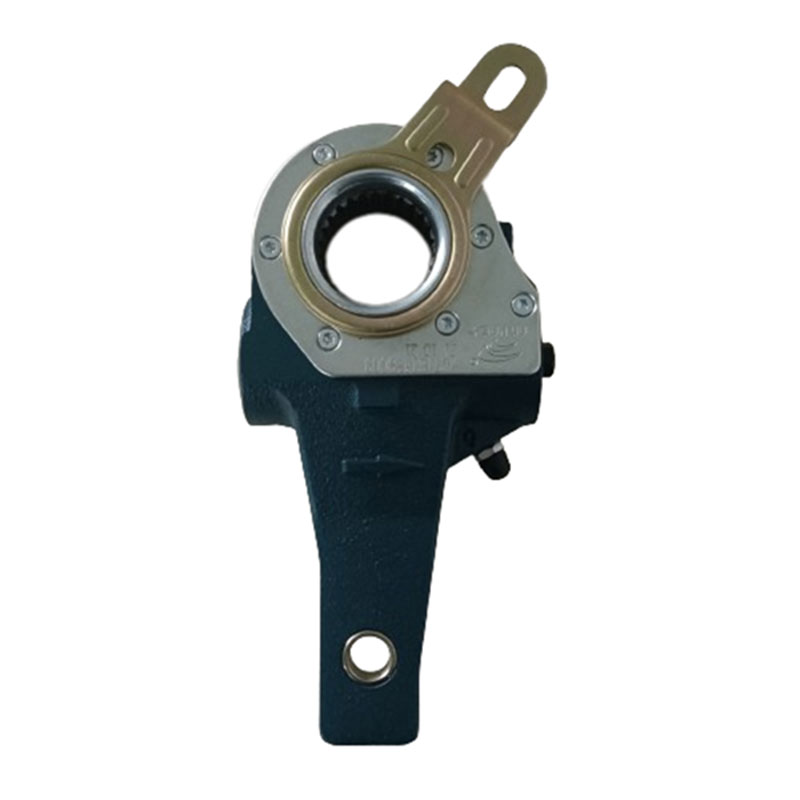

Nres nruas, nres khau, nres chambers, slack adjusters, nres tswv lub tog raj kheej, nres li qub, cua tshuab ziab khaub ncaws |
| Tsav tsheb |

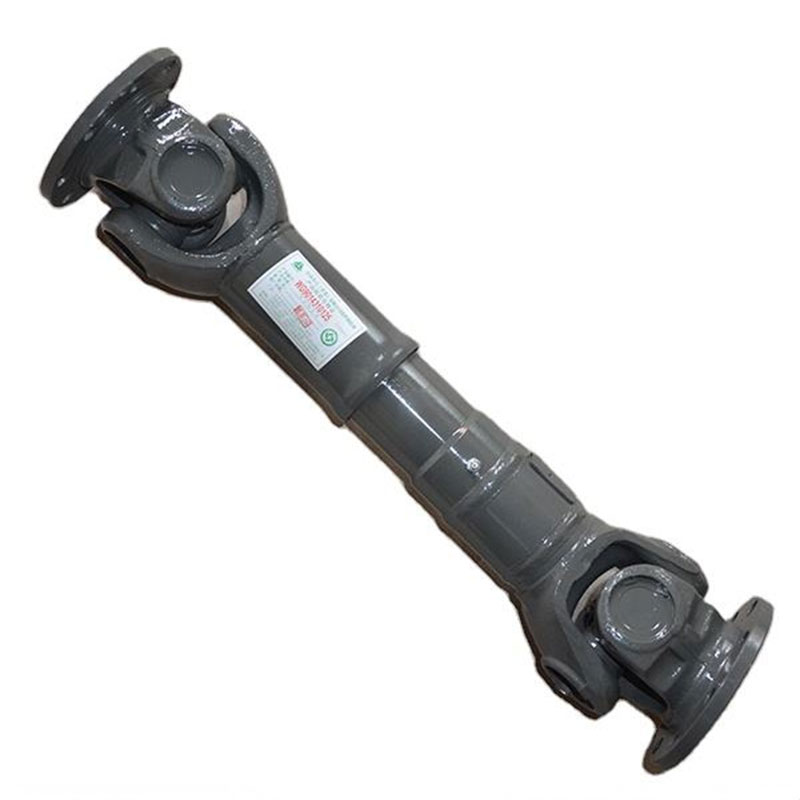

Propeller shafts, universal pob qij txha, lub zog tshem tawm units |
Khoom siv thiab txheej txheem txheej txheem
Chassis Parts yog tsim los rau cov khoom siv qub thiab cov txheej txheem tshwj xeeb thoob plaws txhua lub tshuab:
Ncej structural Cheebtsamsiv high-strength steel daim hlau (550L qib) nrog tensile zog tshaj 550 MPa, muab siab load-bearing muaj peev xwm rau hnyav-load daim ntaub ntawv.
Suspension Cheebtsamsiv cov cua kub-kho alloy steel nrog precision forging thiab machining, xa kev qaug zog tiv thaiv nyob rau hauv rov qab kev ntxhov siab.
Cov kauj ruam txuassiv high-strength alloy steel nrog precision machining thiab deg hardening, kom ntseeg tau meej kev tswj hwm thiab hnav tsis kam.
Nres Cheebtsamsiv cov ntaub ntawv hnav-resistant thiab precision casting txheej txheem rau kev ruaj ntseg braking kev ua tau zoo thiab zoo cua sov dissipation.
Kev kho saum npoo Cov hlau tseem ceeb tau txais zinc-nickel electroplating ntxiv rau kev kho mob passivation, ua tiav cov tshuaj tsw qab ntsev ntau tshaj 480 teev rau kev tiv thaiv corrosion txhim khu kev qha.
Khoom nta
1. Kev ua haujlwm ruaj khov thiab muaj peev xwm thauj khoom siab.
Skyond Chassis Parts yog tsim los tswj qhov hnyav hnyav thiab lub zog xav tau ntawm kev thauj khoom hnyav. Cov ntaub ntawv txhawb zog tiv thaiv deformation thiab qaug zog, muab lub hauv paus ruaj khov rau tag nrho lub tsheb nyob rau qhov ntev.
2. Precision haum thiab yooj yim installation.
Txhua qhov yog tsim los rau thawj lub Hoobkas tshwj xeeb, ua kom muaj kev sib raug zoo nrog cov ntsiab lus mounting uas twb muaj lawm. Qhov no txo cov sij hawm installation thiab tiv thaiv kev hnav khaub ncaws theem nrab ntawm cov tshuab siv tshuab.
3. Corrosion thiab hnav tsis kam.
Kev kho saum npoo av tiv taus qhov hnyav ib puag ncig, suav nrog av nkos, ntsev, thiab kub hloov pauv. Qhov kev tiv thaiv txheej no ua kom lub neej ua haujlwm ntev thiab tswj kev nyab xeeb ntawm lub tsheb thauj khoom tus qauv.
Daim ntawv thov
Peb Chassis Parts tau tsim tshwj xeeb thiab ua kom zoo rau Sinotruk series, suav nrog HOWO, HOWO A7, thiab SITRAK qauv. Cov tsheb thauj khoom no feem ntau ua haujlwm nyob rau hauv kev xav tau mining thiab thoob ntiaj teb freight ib puag ncig qhov twg lub chassis yuav tsum dhau mus tas li vibration thiab hnyav cargo hnyav.
|
Txhawb Lub Tsheb Qauv
|
Cov ntawv thov txhawb
|
| Sinotruk HOWO |
Long-haul freight thiab hla ciam teb logistics |
| Sinotruk HOWO A7 |
Mining kev khiav hauj lwm thiab hnyav overburden tshem tawm |
| Sinotruk SIB |
Cov khoom siv thauj khoom thiab cov tsheb thauj khoom pov tseg |
| Shacman F2000 / F3000 / X3000 |
Kev tsim kho vaj tse thiab kev tsim kho hnyav |
Cov cuab yeej siv ua haujlwm tshaj lij
Skyond siv thev naus laus zis thev naus laus zis los xyuas kom txhua qhov chaw tsim khoom nrog cov khoom zoo sib xws. Peb cov kab ntau lawm feature:
1. Precision Laser Txiav thiab CNC Machining.
Muaj laser cutters hlais hlau nrog huv npoo, thiab CNC lathes tsim spinning qhov chaw uas yuav tsum tau ib tug zoo meej haum. Cov tshuab milling tsim cov chaw tiaj tiaj thiab cov qhov ntawm lub chassis mounts, ua kom yooj yim sib dhos thiab txo cov khib nyiab.
2. Automated Hydraulic nias thiab yeeb nkab dabtsi yog khoov.
High-capacity hydraulic presses pwm cov yam ntxwv cov khoom muaj peev xwm tuav kev ua haujlwm hnyav, thaum tshwj xeeb cov yeeb nkab benders ua tib zoo tsim cov kab hydraulic kom ntseeg tau tias cov ntsaws ruaj ruaj zoo meej thiab cov kua dej zoo txaus.
3. Robotic Vuam thiab Kev Tswj Xyuas Zoo.
Vuam robots ua tau zoo ib yam, txawm tias welds ntawm cov khoom tseem ceeb los xyuas kom meej lub zog sib xws. Txhua feem yuav raug kuaj xyuas kom zoo siv 3D scanners thiab cov kws kuaj xyuas tshwj xeeb kom ua tau raws li cov qauv thoob ntiaj teb.
Peb Muaj Peev Xwm Ntau Lawm
Peb lub peev xwm ntau lawm thiab muab khoom muaj peev xwm rau Chassis Parts yog tsim los ntawm kev tsim khoom thiab kev tswj xyuas zoo.
Kev tsim khoom hauv tsev nrog OEM kev koom tes.Cov khoom tseem ceeb yog tsim nyob rau hauv peb Jinan qhov chaw, thaum lwm tus yog los ntawm OEM-pom zoo factories - ob qho tib si nyob rau hauv peb cov kev tswj kom zoo thiab muaj peev xwm npaj.
Muaj peev xwm txaus txhua hli.Peb lub tuam txhab tau nruab nrog laser txiav, CNC machining, hydraulic nias, neeg hlau vuam, thiab cov kab sib dhos, npog cov kev txiav txim tsis tu ncua thiab cov khoom lag luam uas yuav tsum tau ua nrog lub sijhawm ua haujlwm ruaj khov.
Full-txheej txheem kev tswj kom zoo.Los ntawm cov khoom siv raw mus rau cov khoom tiav, txhua theem ntawm kev tsim khoom raug kuaj xyuas hauv cov txheej txheem. Qhov tseem ceeb qhov ntev, weld kev ncaj ncees, kev kho saum npoo, thiab lwm yam kev qhia tshwj xeeb tau txheeb xyuas qhov tsis sib haum xeeb tsis dhau mus rau theem tom ntej.
Traceability system.Txhua tus muaj tus lej ntau lawm, taug qab mus rau hnub tsim khoom, kev ua haujlwm tsis zoo, thiab cov ntaub ntawv tshuaj xyuas rau kev lav phib xaub zoo.
Common Q&A
Q1: Dab tsi yog cov cim ntawm hnav Chassis Parts?
Cov cim qhia muaj xws li: lub kauj tsheb rub, lub log tsheb tsis sib xws, lub tsheb vibration thaum tsav tsheb, lub suab nrov txawv txav los ntawm kev ncua, thiab txo cov load stability.
Q2: Ntev npaum li cas lawv yuav tsum tau kuaj xyuas?
Kev tshuaj xyuas tsis tu ncua thaum lub sij hawm tu ncua raug pom zoo. Cov khoom raug tshem tawm, kev sib txuas ntawm lub kauj, thiab cov ncej mounts yuav tsum tau kuaj xyuas qhov hnav, tawg, lossis deformation, tshwj xeeb tshaj yog nyob rau hauv cov tsheb khiav lag luam hauv kev xav tau xws li kev khawb av lossis kev tsim kho.
Q3: Dab tsi ua rau tsis ua tiav ntxov ntawm Chassis Parts?
Feem ntau muaj xws li: overloading dhau lub peev xwm ntawm lub tsheb, cuam tshuam kev puas tsuaj los ntawm cov av ntxhib, corrosion los ntawm ntsev los yog tshuaj lom neeg, thiab tsis tu ncua los yog lubrication.
Q4: Koj puas muab cov khoom sib dhos ua tiav?
Yog lawm. Peb muab tag nrho cov kev ncua ncua kev kawm ntawv xws li nplooj springs, mounting brackets, bushings, thiab lwm yam khoom siv. Tiv tauj peb nrog koj lub tsheb specifications rau kev tsocai.
