Skyond yog cov chaw tsim khoom nyob hauv Suav teb thiab cov chaw muag khoom ntawm cov tsheb thauj khoom hnyav nrog ntau dua 15 xyoos ntawm kev ua haujlwm pabcuam kev lag luam tsheb tom qab muag thiab cov lag luam wholesale. Peb cov khoom tseem ceeb muaj xws li cav qhov chaw, Gearbox, braking systems, thiab chassis qhov chaw thiab lwm yam. Nyob rau hauv peb lub cav system portfolio, nws ua lub luag haujlwm tseem ceeb hauv Front End Accessory Drive (FEAD) system. Peb kuj muabGearboxCheebtsam thiabTurbocharger cov tshuab ua kom tiav peb lub cav qhov chaw muab, muab cov neeg tsav nkoj thiab cov khw muag khoom kho nrog cov khoom siv dav dav rau Sinotruk tsheb tu. Cov khoom raug xa tawm thoob ntiaj teb mus rau Africa, Russia, Southeast Asia, Central Asia, thiab tshaj.

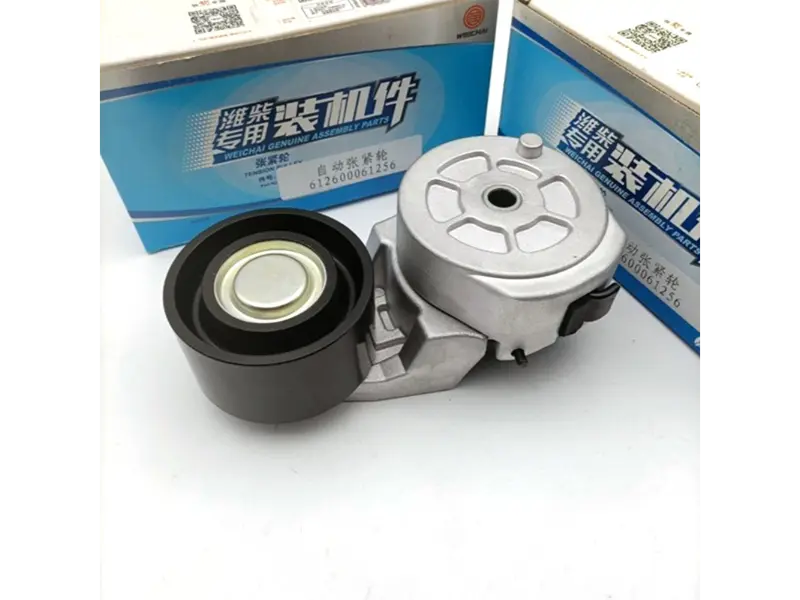

Lub Log Tension yog ib qho kev siv txoj hlua tsis siv neeg tensioning tsim tshwj xeeb rau Sinotruk xyaw, suav nrog WD615, D10, D12, thiab MC series powerplants. Nws cia li kho txoj siv tawv kom them nyiaj rau hnav, ncab, thiab thermal expansion thaum lub cav ua haujlwm. Tsim los nrog lub zog muaj zog hlau alloy sab sauv thiab cov txheej txheem kev sib xyaw ua ke lossis steel pulley, nws ua kom muaj kev tuav zoo ib yam, txo kev vibration, thiab tiv thaiv slippage. Txhua chav tsev yog tsim los ua raws li IATF 16949 thiab ISO 9001: 2000 cov qauv zoo, nrog 100% Hoobkas tshuaj xyuas ua ntej xa khoom. Txawm hais tias kev hloov pauv niaj hnub lossis kev kho thaum muaj xwm txheej ceev, Skyond's Tension Wheel muab qhov kev ntseeg tau tias kev ua haujlwm hnyav hnyav xav tau.

Khoom nta thiab qhov zoo

1. Tsis Siv Neeg Ntxig Kev Kho Kom Zoo Rau Kev Siv Siv Siv Ua Haujlwm

Skyond Tension Wheel siv lub caij nplooj ntoos hlav ua haujlwm uas pom txoj siv elongation thiab them nyiaj rau lub sijhawm tiag tiag, ua kom txoj siv tawv nruj hauv qhov kev pom zoo txhua lub sijhawm. Tsis zoo li cov tensioners ruaj khov, nws muaj txiaj ntsig tiv thaiv kev swb, txo qis kev co thiab suab nrov, thiab ua kom muaj kev ruaj ntseg ntev ntawm tag nrho FEAD system.

2. Extended Service Life for Belts thiab Associated Components

Kev tswj nruj nruj kom txo tau txoj siv sia thaum nqus qhov torsional kev co ntawm lub cav, tiv thaiv alternators, twj tso kua dej, cua txias compressors, thiab lwm yam tsav los ntawm kev puas tsuaj. Rau cov neeg tsav nkoj, qhov no txhais tau tias yuav kho tsawg dua thiab txo tus nqi kho.

3. Optimized Structure Tsim kom muaj lub neej ntev

Nws muaj qhov zoo-precision hnav-resistant bushing, ob-kab sib sib zog nqus-groove pob bearings, thiab ib qho kev ua kom zoo damping system, ua ke nrog plua plav seals uas zoo thaiv txoj kev grit thiab xuab zeb ingress. Txawm hais tias nyob rau hauv cov xwm txheej nyuaj xws li mining thiab chaw tsim kho, nws muaj kev ruaj ntseg rov qab ua haujlwm thiab ua haujlwm ntev dua.

4. Kev tu-dawb tsim rau txo nqi kev pab cuam

Nws yuav tsum tsis muaj greasing tsis tu ncua thiab tsis muaj kev hloov kho txoj siv tawv. Ib zaug ntsia, nws tswj kev nro thoob plaws nws lub neej kev pabcuam tag nrho, ua kom yooj yim rau cov txheej txheem tu txhua hnub thiab txo cov kev kuaj xyuas haujlwm.

5. OEM haum rau kev txhim kho yooj yim

Tsim los rau Sinotruk OEM specifications, nrog mounting qhov thiab qhov ntev precisely matched rau lub cav. Tsuas yog tshem lub tsev qub thiab nruab ib lub tshiab uas tsis muaj kev hloov kho lossis hloov kho. Qhov no txuag rhiav installation lub sij hawm thiab tshem tawm rework tshwm sim los ntawm dimensional deviations.

Lub Tension Wheel Ua li cas?

Hauv lub tshuab hluav taws xob hnyav hnyav, Lub Hauv Ntej End Accessory Drive (FEAD) system siv ib txoj siv serpentine los tsav ntau yam khoom siv xws li lub tshuab hluav taws xob, lub twj tso kua mis, lub twj tso kua mis lub hwj chim, lub tshuab cua txias, thiab kiv cua. Nws tswj xyuas txoj siv tawv nruj kom zoo, kom ntseeg tau tias txhua yam khoom siv tau txais lub zog tsav zoo ib yam.

Cov haujlwm tseem ceeb:

Tsis siv neeg nro hloov. Nws siv lub tshuab caij nplooj ntoos hlav sab hauv los siv lub zog tas li rau txoj siv, them nyiaj rau txoj siv sia thiab hnav lub sijhawm. Qhov no tswj txoj siv tawv nruj yam tsis muaj kev hloov kho.

Kev vibration damping. Los ntawm kev tswj kom tsis tu ncua, nws txo txoj siv flutter thiab vibration thaum lub cav ua haujlwm. Qhov no tiv thaiv ob txoj siv thiab cov khoom siv uas tau tsav los ntawm kev hnav ntxov ntxov.

Kev tiv thaiv plam. Kev sib txhuam txoj hlua khi txhais tau hais tias txoj siv sia muaj kev sib txhuam txaus rau txhua lub pulley. Qhov no tiv thaiv kev swb uas yuav txwv tsis pub cov khoom tso tawm hluav taws xob, cov twj tso kua dej ntws, lossis kev pab cuam lub zog.

Extended tivthaiv lub neej. Kev ua haujlwm zoo nws faib cov khoom sib npaug thoob plaws txoj siv sia thiab cov khoom siv ntxiv, txo kev ntxhov siab ntawm tus kheej cov khoom thiab txuas ntxiv lub neej kev pabcuam ntawm tag nrho FEAD system.

Cov cim ntawm lub log tsis ua haujlwm

Lub Tension Log feem ntau muab kev pabcuam txhim khu kev qha rau 60,000 txog 100,000 km, tab sis zoo li txhua yam khoom siv, nws thiaj li hnav. Cov tsos mob tshwm sim muaj xws li:

Cov tsos mob	Koj Yuav Pom Dab Tsi
Suab nrov txawv txawv	Nruam "squealing" lossis "chirping" suab los ntawm lub cav bay, pom ntau dua ntawm RPM siab dua. Lub suab nrov yuav yog ib qho squeal tsis tu ncua (qhia tias tsis txaus siab) lossis ib qho kev sib tw chirp (feem ntau tshwm sim los ntawm kev coj tus kheej).
Siv misalignment los yog flipping	Txoj siv tawv drifts off-centre ntawm lub Tension Log los yog flips tag nrho. Qhov no feem ntau tshwm sim los ntawm hnav bushings cia lub tensioner mus misalign.
Siv tawv slippage	Txo cov hluav taws xob hloov hluav taws xob (lub teeb dimming), lub zog hluav taws xob tsis muaj zog, lossis kub dhau (txo cov dej twj tso kua mis ntws). Txoj siv sia poob kev sib txhuam tawm tsam cov pulleys.
Hard pib los yog ntxhib idle	Nyob rau hauv cov xwm txheej hnyav, lub cav yuav qeeb qeeb lossis tsis ua haujlwm hnyav vim qhov tsis txaus siv lub zog tsav.

Ua kom tiav cov khoom kuaj

Kev sim ua haujlwm. Txhua qhov ua tiav Tension Wheel raug sim ntawm ib qho kev sib koom ua ke los txheeb xyuas:

1. Lub caij nplooj ntoos hlav nro nyob rau hauv qhov kev teev tseg

2. Cov kabmob smoothness thiab tsis muaj suab nrov

3. Siv caj npab tig thiab rov qab zoo

4. Txoj siv taug qab kev sib tw

100% kev tshuaj xyuas. Txhua chav nyob hauv kev tshuaj xyuas qhov muag thiab kev txheeb xyuas qhov ntev ua ntej ntim. Tsis muaj leej twg tawm hauv lub Hoobkas yam tsis tau dhau qhov kev soj ntsuam tag nrho.

Cov ntawv pov thawj thiab cov qauv

Skyond tswj xyuas cov txheej txheem tswj xyuas kom zoo thoob plaws txhua qhov kev tsim khoom.

ISO 9001: 2000 Kev Tswj Xyuas Zoo.Peb tag nrho kev tsim khoom thiab kev soj ntsuam zoo ua haujlwm tau lees paub raws li ISO cov qauv thoob ntiaj teb, ua kom muaj kev ntseeg tau zoo ib yam rau txhua pawg ntawm cov tsheb thauj khoom hnyav.

IATF 16949 Automotive Standards.Peb cov khoom yog tsim nyob rau hauv ua raws li lub siab tshaj plaws thoob ntiaj teb automotive kev lag luam cov qauv zoo, lav tias txhua daim ua tau raws li cov kev cai nruj durability ntawm lub ntiaj teb no fleet tswv thiab kho cov kws tshwj xeeb.

GB/T 45016-2024 Ua raws.Peb cov khoom raug soj ntsuam raws li lub teb chaws tus qauv rau lub cav accessory siv tsav system tsis siv neeg tensioner xeem txoj kev, npog high-temperature durability, low-temperature durability, corrosion testing, contamination testing, thiab lwm yam tseem ceeb metrics.

Cov lus pom zoo hloov thiab kho

1. Lub sijhawm ua haujlwm pom zoo.Tshawb xyuas lub Log Tension thiab siv txoj hlua khi txhua txhua 60,000 txog 100,000 km. Ntau lub tsheb lag luam OEMs pom zoo FEAD kev tshuaj xyuas thaum lub sij hawm hloov roj, nrog kev hloov tag nrho nyob ib ncig ntawm 300,000 mais.

2. Kev tshuaj xyuas qhov muag.Tshawb xyuas qhov Tension Wheel nto thiab siv rau cov roj paug, tawg, lossis cov qauv coj txawv txawv. Roj-soaked txoj siv sia poob kev sib txhuam thiab tuaj yeem ua rau ntxov ntxov tensioner hnav.

3. Mloog suab.Ib qho squealing, chirping, los yog sib tsoo suab nrov ntawm pem hauv ntej ntawm lub cav yuav tsum tau soj ntsuam tam sim ntawd. Lub suab nrov feem ntau qhia txog kev coj tus kheej lossis tsis txaus.

4. Hloov ua qhov system.Thaum hloov lub Tension Wheel, xav txog kev hloov txoj siv serpentine thiab ib qho idler pulleys ib txhij. Hnav cov khoom ua kom hnav ntawm qhov tshiab.

Skyond's Complete Parts Portfolio

Lub Log Tension yog ib feem ntawm Skyond qhov dav dav lub cav qhov kev muab. Peb muab ntau yam ntawm Sinotruk-tshaj qhov chaw:

Cav system.

Roj twj tso kua mis, twj tso kua mis, roj twj, turbochargers, thiab tag nrho cov khoom siv gasket.

Kev sib kis.

GearboxCheebtsam, synchronisers, thiab clutch sib dhos.

Braking system.

Nres ncoo, nruas, cua tshuab ziab khaub ncaws, thiab li qub.

Chassis thiab ncua kev kawm ntawv.

Nplooj springs, bushings, thiab steering Cheebtsam.

Cov khoom tu.

Cov lim dej (roj, roj, huab cua), siv, thiab tensioners suav nrog Tension Wheel ntawm no.

Rau cov neeg tsav nkoj thiab cov khw kho mob, cov khoom siv los ntawm ib tus neeg muag khoom txo qis kev yuav khoom thiab ua kom cov khoom sib raug zoo thoob plaws lub tsheb.

FAQ

Q1: Lub cav thiab lub tsheb twg yog Tswb Log sib haum nrog?

Nws yog sib xws nrog Sinotruk HOWO, HOWO A7, STEYR, thiab Shacman tsheb thauj khoom nruab nrog Weichai WD615, WD618, WP10, WP12, WP13, thiab Sinotruk MC series xyaw.

Q2: Ntev npaum li cas yuav tsum tau hloov lub log tsheb?

Peb pom zoo kom kuaj xyuas txhua 60,000 txog 100,000 kis lus mev thiab hloov pauv thaum pom cov tsos mob tshwm sim. Nyob rau hauv kev xav tau kev khiav hauj lwm tej yam kev mob xws li mining, kev tsim kho, los yog huab cua kub ntau zaus tshuaj xyuas yog advisable.

Q3: Kuv puas tuaj yeem hloov qhov Tension Wheel, lossis kuv puas yuav tsum hloov txoj siv thiab?

Thaum nws tuaj yeem hloov tau ntawm nws tus kheej, peb xav kom hloov txoj siv serpentine tib lub sijhawm. Ib txoj siv tawv hnav tuaj yeem ua kom hnav ntawm lub zog tshiab, thiab hloov ob qho tib si ua kom tag nrho FEAD system ua haujlwm ntawm kev ua haujlwm zoo.

Q4: Dab tsi ua rau Tension Log ua tsis tiav ntxov?

Feem ntau ua rau muaj xws li: txoj siv tawv nruj dhau los yog qis dhau; roj los yog coolant paug ntawm txoj siv thiab pulley; kev ua haujlwm kub heev; thiab ib txwm hnav ntawm cov kabmob sab hauv thiab lub caij nplooj ntoo hlav dhau sijhawm.

Q5: Puas yog Skyond muab OEM customization?

Yog lawm. Skyond muab cov kev pabcuam customization nrog rau cov npe khoom lag luam, ntim kev cai, thiab cov lus qhia tshwj xeeb. Yam tsawg kawg nkaus siv tau.

Q6: Lub sijhawm lav yog dab tsi?

Skyond muab 3-hli warranty ntawm Tension Log. Yog tias muaj teeb meem zoo tshwm sim hauv lub sijhawm lav, peb kho, hloov, lossis rov qab rau koj txaus siab.

Kev them nyiaj yug Warranty

Skyond sawv tom qab txhua lub log Tension peb tsim. Peb nkag siab tias nyob rau hauv lub luag hauj lwm hnyav tsheb thauj khoom, unplanned downtime nqi ntau tshaj qhov nws tus kheej. Peb qhov kev lav phib xaub thiab kev muag khoom tom qab yog tsim los muab cov neeg tsav nkoj thiab cov khw kho mob ntseeg siab rau txhua yam peb muab.

Warranty Coverage

Txhua daim uas muab los ntawm Skyond yog 3 lub hlis lav txij li hnub xa khoom. Qhov kev lees paub no suav nrog kev tsim khoom tsis raug ntawm cov khoom siv thiab kev ua haujlwm, suav nrog:

Caij nplooj ntoos hlav mechanism tsis ua hauj lwm.Yog tias lub caij nplooj ntoos hlav sab hauv poob nws qhov nro calibrated los yog so thaum lub sijhawm ua haujlwm ib txwm, peb hloov lub tsev.

Cov kabmob tsis ua haujlwm.Kev coj tus kabmob ntxov ntxov lossis qaug dab peg vim yog kev tsim khoom tsis xws luag yog them, yog tias qhov chaw tau raug teeb tsa kom raug thiab ua haujlwm raws li cov xwm txheej ib txwm muaj.

Cov yam ntxwv tsis xws luag.Kev tawg, tawg, lossis deformation ntawm lub pulley, vaj tse, lossis caj npab uas tshwm sim los ntawm cov khoom siv lossis kev tsim khoom raug them.

foob tsis ua hauj lwm.Yog tias cov kabmob ntsaws ruaj ruaj tsis ua haujlwm ntxov, tso cai rau kev sib kis lossis cov roj nplua nyeem, peb npog qhov hloov.
