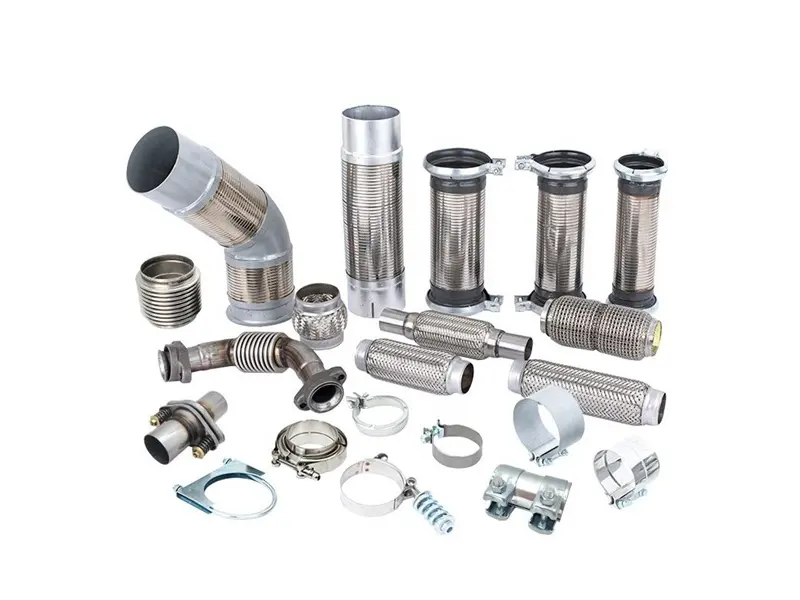

Skyond yog cov chaw tsim khoom thiab cov chaw muag khoom hauv Suav teb uas muab cov khoom siv thauj khoom hnyav rau Sinotruk HOWO thiab Shacman Truck nrog 15 xyoo dhau los ua haujlwm pabcuam kev lag luam tsheb tom qab muag thiab cov lag luam wholesale. Ntawm peb cov emission systems portfolio, Truck Exhaust Pipe yog ib qho tseem ceeb tivthaiv uas tso cov pa cua kub kub los ntawm lub turbocharger mus rau muffler los yog tom qab kho qhov system. Peb kuj muab tshwj xeeb variants nrog rau corrosion-resistant304 Stainless hlau Exhaust yeeb nkabthiab covTruck Exhaust Pipe Intake Piperau kev siv cua induction, nrog rau peb cov khoom siv dav dav ntawm lub cav thiab tsav tsheb. Cov khoom raug xa tawm thoob ntiaj teb mus rau Tebchaws Europe, Africa, Russia, Southeast Asia, Central Asia, thiab dhau mus.
Lub Truck Exhaust Pipe ua haujlwm rau ob lub luag haujlwm tseem ceeb: coj cov pa pa tawm ntawm lub cav, thiab muab kev sib txuas yooj yim hauv cov pa tawm uas nqus cov kev co thiab thermal expansion. Qhov kev sib txuas yooj yim no txo qis kev ntxhov siab ntawm lub turbocharger thiab muffler, ua kom yooj yim rau kev teeb tsa, thiab txuas ntxiv lub neej kev pab cuam ntawm tag nrho cov pa tawm. Skyond's Exhaust Pipe yog tsim los ntawm hwm 304 stainless hlau, engineered nrog du sab hauv mandrel khoov kom txo qis backpressure thiab optimize lub cav ua pa. Txhua cov yeeb nkab yog tsim nyob rau hauv peb lub Hoobkas nrog precision CNC dabtsi yog khoov thiab laser welding, thiab undergoes 100% xau kuaj ua ntej xa zaub mov. Txawm hais tias kev hloov pauv niaj hnub lossis kev teeb tsa kev cai, Skyond's Exhaust Pipe muab lub zog ua haujlwm uas yuav tsum tau ua haujlwm hnyav.
Taw qhia txog Truck Exhaust Pipe
Lub Truck Exhaust Pipe sib dhos yog ntsia nruab nrab ntawm lub cav tso pa manifold thiab lub muffler uas yog ib qho kawg txuas mus rau lub qhov hluav taws xob turbocharger, lwm qhov mus rau qhov muffler inlet. Nws ua ob lub luag haujlwm tseem ceeb: coj cov cua kub cua txias tawm ntawm lub tsheb, thiab muab kev sib txuas yooj yim hauv cov pa tawm uas nqus kev co thiab thermal expansion. Qhov kev sib txuas yooj yim no txo qis kev ntxhov siab ntawm cov khoom siv hluav taws xob, ua kom yooj yim rau kev teeb tsa, thiab txuas ntxiv lub neej kev pab cuam ntawm tag nrho cov emission system.
Tsim kom zoo rau Backpressure thiab Flow Efficiency
Kev tsim sab hauv ntawm Truck Exhaust Pipe ncaj qha cuam tshuam rau kev ua haujlwm ntawm lub cav.
Mandrel khoov.Txhua yeeb nkab yog tsim los ntawm mandrel dabtsi yog khoov tshuab. Tsis zoo li compression dabtsi yog khoov, uas deforms cov yeeb nkab hla ntu ntawm qhov khoov, mandrel dabtsi yog khoov tuav tag nrho sab hauv txoj kab uas hla los ntawm nkhaus. Qhov no khaws cia cov pa tso pa tawm nrawm thiab tiv thaiv kom tsis txhob muaj siab.
Precision haum.Cov yeeb nkab kawg yog tsim los rau qhov ntev sib xws nrog lub qhov hluav taws xob turbocharger thiab muffler inlet. Qhov no ua kom muaj kev sib khi zoo thiab tshem tawm cov pa tawm uas yuav ua rau txo qis cov lus teb turbocharger thiab ua kom lub suab nrov hauv tsev.
Saj zawg zog seem tsim.Ib qho yooj yim-style seem tau muab tso rau hauv cov yeeb nkab tsim, tso cai rau cov pa tawm kom nqus cov cav txav thiab thermal expansion yam tsis hloov kev ntxhov siab rau lub turbocharger lossis muffler. Qhov no txo qhov kev pheej hmoo ntawm kev tawg ntawm cov ntsiab lus txuas.
Cov tsos mob tshwm sim
| Cov tsos mob |
Ua Tau |
| Exhaust yeeb nkab vibration lossis suab nrov txawv txawv |
Cov yeeb nkab puas ua rau cov pa tawm; xoob mounting bolts |
| Exhaust yeeb nkab corrosion |
Dej vapor condensation sib xyaw nrog cov pa oxides los tsim cov kua qaub corrosive, tawm tsam cov yeeb nkab phab ntsa |
| Txo lub cav fais fab lossis siv roj ntau ntxiv |
Kev tso pa tawm ntau dhau vim yog cov yeeb nkab thaiv lossis kev puas tsuaj sab hauv |
| Exhaust tsw nyob rau hauv los yog ib ncig ntawm lub cabin |
Tso pa tawm ntawm cov ntsiab lus txuas |
Kev tsim khoom
Skyond's Truck Exhaust Pipe ntau lawm chaw yog nruab nrog precision CNC dabtsi yog khoov tshuab, automated laser vuam kab, thiab kev kho deg chaw.
Precision dabtsi yog khoov.CNC mandrel benders tsim ib qho kev khoov radii thiab tswj kev ncaj ncees hla ntawm tag nrho cov kev tsim khoom. Qhov no ua kom txhua cov yeeb nkab haum rau lub tsheb uas tsis tas yuav hloov kho thaum lub sijhawm teeb tsa.
Laser vuam.Automated laser welding ua kom huv si, muaj zog welds nrog tsawg tshav kub-tshem tawm tsam. Qhov no khaws cia cov hlau tsis muaj corrosion-resistant cov khoom ntawm cov pob qij txha thiab ua kom muaj qhov zoo sib xws ntawm cov khoom siv ntau lawm.
Kev kho saum npoo.Tom qab-weld tu thiab passivation kev kho mob rov qab tiv thaiv oxide txheej ntawm stainless hlau nto, tswj corrosion kuj ntawm weld cheeb tsam.
100% kev kuaj dej.Txhua cov yeeb nkab ua tiav dhau los ntawm kev sim siab los xyuas kom meej tias tsis muaj qhov xau ntawm cov welds lossis cov ntsiab lus txuas. Tsuas yog cov kav dej uas dhau qhov kev xeem raug xa mus.
Custom Manufacturing Service
Skyond muab cov kev pabcuam tshwjxeeb tsim khoom rau cov kav dej kom tau raws li lub tsheb tshwj xeeb, kev kho tsheb vintage, lossis cov khoom siv tshwj xeeb uas tsis muaj cov khoom siv.
Cov neeg muas zaub muab kev kos duab, qhov ntev specifications, los yog lub cev qauv. Peb pab pawg engineering siv cov qauv 3D siab heev thiab cov cuab yeej khoov precision kom rov ua dua tus qauv tsim nrog qhov tseeb.
Hloov cov lus pom zoo thiab kev saib xyuas txhua hnub
1. Paub meej tias tus lej thiab lub tsheb sib tw.
Cov kav dej xau sib txawv ntawm cov qauv cav thiab cov qauv emission. Cov yeeb nkab rau WD615 Euro-III ob-valve cav yuav tsis haum rau WD615 Euro-III plaub-valve EGR cav. Nco ntsoov txheeb xyuas tus lej ntawm koj lub tsheb lub cav thiab kev teeb tsa emission.
2. Tshawb xyuas cov khoom sib txuas.
Thaum hloov lub Truck Exhaust Pipe, xyuas lub turbocharger qhov hluav taws xob flange thiab muffler inlet rau kev puas tsuaj los yog corrosion. Hnav lossis puas cov ntsiab lus sib txuas tuaj yeem ua rau xau txawm tias muaj cov yeeb nkab tshiab.
3. Tiv thaiv cov pa tawm.
Kev txhim kho kom zoo yog qhov tseem ceeb. Xyuas kom cov yeeb nkab kawg yog zaum kawg thiab clamps yog torqued rau specification. Ib qho kev sib txawv ntawm kev teeb tsa yuav ua rau cov pa tso pa tawm, muaj suab nrov, thiab muaj peev xwm ua rau cov khoom nyob ze.
4. Txheeb xyuas cov ntsia liaj qhov rooj.
Loos los yog corroded mounting bolts yuav tsum tau hloov thaum lub sij hawm installation.
5. Kev tshuaj xyuas tsis tu ncua.
Txheeb xyuas cov yeeb nkab saum npoo ib ntus kom pom cov cim ntawm xeb, tawg, lossis carbon soot nyob ib puag ncig cov pob qij txha; soot qhia tau hais tias me me xau uas yuav tsum tau hais tam sim ntawd. Tshawb xyuas mounting brackets thiab clamps los tiv thaiv kev vibration-induced stress fractures.
FAQ
Q1: Lub cav thiab lub tsheb twg yog qhov sib xws nrog Skyond Truck Exhaust Pipes?
Cov kav dej Skyond tau sib xws nrog Sinotruk HOWO, HOWO A7, thiab Shacman tsheb thauj khoom nruab nrog WD615, WP10, WP12, thiab MC series xyaw. Peb kuj muab cov kav dej rau European tsheb platforms. Paub meej tias koj lub tsheb qauv, hom cav, thiab tus lej qub ua ntej xaj.
Q2: Dab tsi yog qhov zoo ntawm 304 stainless hlau tshaj cov hlau me me?
304 stainless hlau resists acidic condensate uas tsim nyob rau hauv cov kav dej tso tawm, tsis xeb los ntawm, thiab tswj cov txheej txheem kev ncaj ncees ntawm cov pa kub. A 304 stainless hlau yeeb nkab feem ntau kav peb mus rau tsib zaug ntev dua li cov hlau me me sib npaug.
Q3: Skyond puas tuaj yeem muab cov kav dej ua kom zoo li tus kheej?
Yog lawm. Peb muab kev cai tsim rau cov neeg siv khoom kos duab. Muab cov duab kos duab, qhov loj me, lossis cov qauv ntawm lub cev, thiab peb pawg neeg tsim khoom yuav rov tsim koj tus qauv tsim.
Q4: Dab tsi yog cov cim qhia tias kuv cov yeeb nkab yuav tsum tau hloov?
Cov cim qhia muaj xws li: pom xeb los ntawm, perforation, los yog tawg; nce suab nrov qhia tias muaj pa; txo lub zog ntawm lub cav lossis siv roj ntau ntxiv; thiab pom qhov pom ntawm qhov tso pa tawm ntawm cov pob qij txha sib txuas.
Q5: Kuv puas tuaj yeem hloov qhov puas ntawm cov yeeb nkab?
Thaum kho cov seem qee zaum ua tau, peb pom zoo kom hloov cov yeeb nkab tag nrho. Hloov tsuas yog ib ntu feem ntau ua rau tsis zoo, cov ntsiab lus kev ntxhov siab, thiab ua tsis tiav ntxov ntawm qhov chaw kho.
