Hloov Hloov WG9130583017 rau Sinotruk HOWO

Kev Sib Txuas Hloov WG9130583017 rau Sinotruk HOWO los ntawm Tuam Tshoj tus neeg muag khoom thiab lub Hoobkas Skyond, muab cov neeg yuav khoom thoob ntiaj teb hloov pauv OEM-qib ncaj qha rau cov kauj ruam hloov los ua ke ntawm Sinotruk cov tsheb thauj khoom hnyav. Qhov kev sib xyaw ua ke no coj ua ke cov teeb liab tig, lub teeb taub hau (high / low beam), pos huab teeb, wipers, ntxhua khaub ncaws, thiab horn rau hauv ib lub zog. Kev sib xyaw ua ke muaj cov nplaim hluav taws kub-retardant ABS vaj tse, nyiaj-plated oxygen-dawb tooj liab tiv tauj, thiab TPE mos-grip kov. Nrog IP65 tiv thaiv ntsuas, nws tiv taus ya raws thiab plua plav nkag. Rau cov neeg tsav nkoj thiab cov khw kho, qhov no txhais tau tias tsis muaj hluav taws xob tsawg dua, kev teeb tsa sai dua, thiab kev tswj xyuas kev nyab xeeb-tseem ceeb teeb pom kev zoo thiab wiper ua haujlwm ib hnub dhau ib hnub.

Xa lus nug

Product Description

Kev Sib Txuas Hloov WG9130583017 rau Sinotruk HOWO yog lub kauj tsheb kauj vab-mounted multi-function control unit muab los ntawm hom Skyond rau cov neeg yuav khoom thoob ntiaj teb, tsim khoom ntawm peb lub chaw nyob hauv Suav teb. Nws yog tsim tshwj xeeb rau Sinotruk HOWO A7, T7H, T5G, TX series, thiab kuj tau sib xws nrog cov qauv STR (Steyr). Kev sib xyaw ua ke sib koom ua ke tswj cov teeb liab tig, lub teeb taub hau, pos huab teeb, wipers, ntxhua khaub ncaws, thiab horn rau hauv ib sab-mounted lever. Qhov kev tsim no tso cai rau cov neeg tsav tsheb khiav haujlwm tseem ceeb yam tsis tau tshem tawm tes ntawm lub kauj tsheb uas ncaj qha txhim kho kev nyab xeeb thiab yooj yim ntawm kev tsav tsheb. Rau cov kws tshaj lij kev cob qhia, qhov hloov pauv muab kev hloov pauv ncaj qha thiab ua si sib tw uas sib tw thawj cov hlua txuas thiab cov ntsiab lus txuas, txiav lub sijhawm teeb tsa tau zoo.

Cov Khoom Muag Khoom Specification Table

Qeb	Yam khoom	Paub meej
Product Basic Information	Qauv No.	WG9130583017
	Hom	Los ntawm txhais tes kis tau tus mob
	Haum rau	HOWO A7
	Hom / Trademark	Tsis muaj npe (generic)
	Qhov xwm txheej	Hom Tshiab
	Zoo	100% kuaj
	Keeb kwm	Tuam Tshoj
Mechanical & Performance Parameters	Txias System	Dej Txias
	Hom Clutch (raws li teev "Efficiency")	Dual Phaj Clutch
	Khoom siv	Hlau
	Number of Speeds	10-ceev
	Torque Capacity	2000 Ib-ft
	Dimensions (pob khoom / khoom?)	5 × 3 × 3 cm (sau raws li Specification)
Hluav taws xob & Environmental Specifications	Siv tau Voltage	24V DC (rau cov tsheb thauj khoom hnyav hluav taws xob)
	Rated Tam sim no	10A (Max 15A)
	Hom Connector	16-pin waterproof connector (OEM txheem)
	Kev tiv thaiv ntsuas	IP65 (waterproof thiab plua plav)
	Kev khiav hauj lwm qhov kub thiab txias	-40 ℃ ~ + 85 ℃
Cov Ntaub Ntawv Kev Lag Luam & Logistics	Thauj Pob	Lub thawv ntawv, lub thawv ntoo
	HS Code	8708405000
	Muaj Peev Xwm Ntau Lawm	50,000 daim ib hlis

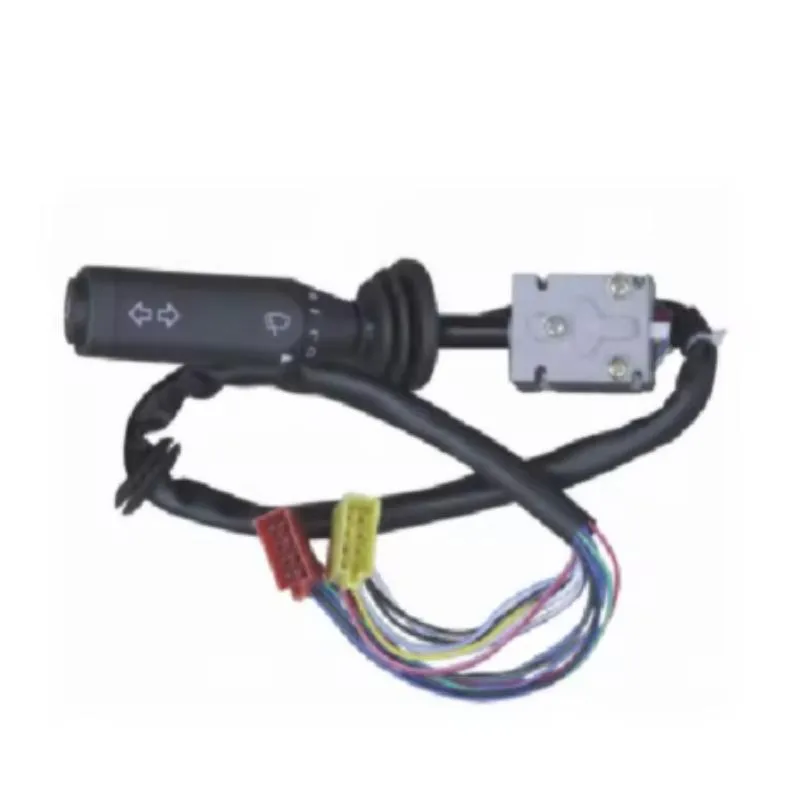

Combination Switch WG9130583017 for Sinotruk HOWO Heavy Duty Truck Accessories

Core Functions

Kev Sib Txuas Hloov WG9130583017 rau Sinotruk HOWO integrates cov haujlwm hauv qab no rau hauv ib qho kev sib dhos ib sab:

Kev tswj teeb pom kev zoo:Tig teeb liab (sab laug / sab xis), siab beam, qis beam, thiab pos huab teeb. Txhua lub teeb pom kev ua haujlwm yog ua los ntawm kev nkag siab lub zog ntawm lub zog thawb, rub, lossis tig tso cai rau tus neeg tsav tsheb teb rau kev hloov ntawm txoj kev tam sim ntawd.

Wiper thiab washer tswj:Windshield wiper speed adjustment (intermittent, low, high) thiab washer activation. Lub wiper tswj yog qhov tseem ceeb rau kev tswj kom pom kev pom hauv nag, daus, lossis plua plav.

Horn:Integrated horn khawm rau kev ua kom sai thaum muaj xwm txheej ceev.

Kev sib xyaw ua ke txo cov naj npawb ntawm cov tswj kev sib cais ntawm cov kauj kauj, ua kom yooj yim rau kev teeb tsa hauv tsev thiab txo cov ntsiab lus tsis ua haujlwm. Rau tus neeg tsav tsheb, qhov no txhais tau tias tag nrho cov kev tswj hwm tseem ceeb nyob rau hauv cov ntiv tes ncav cuag, ua kom muaj kev nyab xeeb dua, tshwj xeeb tshaj yog nyob rau hauv huab cua phem lossis kev tsheb loj.

Kev xaiv khoom

Kev Sib Txuas Hloov WG9130583017 rau Sinotruk HOWO yog tsim los tiv thaiv ib puag ncig hnyav ntawm lub tsheb thauj khoom hnyav. Txhua yam khoom raug xaiv rau ib qho laj thawj tshwj xeeb:

Tsev

High-lub zog nplaim-retardant ABS yas. ABS muab cov kev cuam tshuam zoo heev thiab qhov ruaj khov ntawm qhov dav ntawm qhov kub thiab txias. Qib nplaim-retardant yuav txo tau hluav taws kub thaum muaj hluav taws xob luv luv. Qhov no yog qhov tseem ceeb hauv lub tsheb thauj khoom uas muaj kev vibration, kub hloov pauv, thiab lub sijhawm ua haujlwm ntev yog cov qauv.

Tiv tauj

Silver-plated oxygen-dawb tooj liab. Oxygen-dawb tooj liab muaj cov khoom siv hluav taws xob zoo tshaj plaws, txo qis hluav taws xob thiab hluav taws xob tsim hluav taws xob ntawm cov ntsiab lus sib cuag. Cov nyiaj plating muab qhov ua haujlwm qis, oxidation-resistant nto uas tswj xyuas cov hluav taws xob sib txuas nrog ntau txhiab tus hloov mus. Qhov no txhais tau hais tias ua tau zoo ib yam los ntawm cov teeb pom kev zoo thiab lub tshuab wiper uas tsis muaj qhov taw qhia flickering lossis cuam tshuam tsis ua haujlwm wiper.

tuav

Hnav-resistant TPE mos roj hmab. TPE (thermoplastic elastomer) muab qhov chaw xis nyob, tsis muaj qhov tsis zoo uas tiv thaiv hnav los ntawm kev siv dua thiab raug rau cov roj thiab cov tshuaj ntxuav. Cov kev xav mos txo cov neeg tsav tsheb qaug zog thaum lub sij hawm ntev hauls.

Kev tiv thaiv IP65. Lub connector interface muaj xws li ib tug waterproof sealing nplhaib, thiab tag nrho cov sib dhos yog ntsuas IP65 plua plav-nruj thiab tiv thaiv cov dav hlau dej. Qhov no ua kom lub qhov hloov pauv tseem ua haujlwm txawm tias nyob hauv cov chaw siv plua plav lossis nag hnyav.

Cov tsos mob tshwm sim ntau thiab kev kuaj mob ceev

Kev sib xyaw ua ke yog tsim los rau lub neej ua haujlwm ntev, tab sis zoo li txhua yam khoom siv hluav taws xob, nws tuaj yeem pom cov cim ntawm kev hnav. Cov tsos mob tshwm sim muaj xws li:

Cov tsos mob	Ua Tau	Diagnostic Method
Muaj nuj nqi tsis teb (piv txwv li, tig lub teeb liab lossis wipers tsis ua haujlwm)	Internal contact tsis ua hauj lwm los yog Circuit Court qhib	Tshawb xyuas lub zog ntawm qhov hloov hluav taws xob; sim continuity nyob rau hauv lub switching terminals
Kev ua haujlwm tsis sib xws - ua haujlwm tsuas yog thaum lub zog tuav lossis thawb nyuaj	Hnav los yog kub hnyiab tiv tauj (tsiv thiab chaw sib tiv tauj cov ntsiab lus)	Visually tshuaj xyuas cov neeg; kuaj hloov nrog multimeter rau kev sib tshuam txuas ntxiv
Lever xav tias xoob los yog tsis koom nrog hauv mechanism	Kov ncej bore hnav los yog sab hauv rwb thaiv tsev pas nrig deformation	Tshawb xyuas mechanical linkage nyob rau hauv lub tsev hloov
Hloov tsev nyob zoo li kub los yog muaj ntxhiab tsw	Hu rau overload los yog luv luv Circuit Court nyob rau hauv thaiv	Txheeb xyuas Circuit Court load; tshuaj xyuas cov kab mob puas; hloov pauv yog tias cov neeg raug hlawv

Khoom siv

Kev Sib Txuas Hloov WG9130583017 rau Sinotruk HOWO tshwj xeeb yog tsim los rau Sinotruk cov tsheb thauj khoom hnyav, suav nrog:

1. Sinotruk HOWO A7

2. Sinotruk HOWO T7H

3. Sinotruk HOWO T5G

4. Sinotruk HOWO TX series

5. STR (Steyr) qauv

Cov tsheb thauj khoom no ua haujlwm hla ntau yam xwm txheej:

1. Kev thauj mus los ntev ntawm cov huab cua sib txawv

2. Kev faib khoom hauv cheeb tsam thiab kev thauj mus los

3. Kev tsim kho thiab mining qhov chaw uas muaj plua plav thiab kev co

4. Kev thauj mus los hauv nroog thiab hauv nroog uas yuav tsum tau siv teeb pom kev zoo thiab wiper

Hauv cov ntawv thov no, kev hloov pauv kev ntseeg tau tsis yog khoom kim heev, nws yog qhov yuav tsum tau muaj kev nyab xeeb. Cov teeb liab ua tsis tiav tsim teeb meem rau lwm tus neeg siv txoj kev; cov wipers tsis ua haujlwm cuam tshuam qhov pom kev hauv nag; lub teeb taub hau uas tsis tuaj yeem txo qis kev nyab xeeb ntawm kev tsav tsheb hmo ntuj. Kev Sib Txuas Sib Txuas hais txog cov kev txhawj xeeb no los ntawm kev muab hluav taws xob zoo ib yam thiab kev siv tshuab ua haujlwm ntev.

Qhov zoo

1. Integrated multi-function tswj. Kev sib xyaw ua ke ua haujlwm ua haujlwm hauv nruab nrab rau cov teeb liab tig, wipers, thiab teeb pom kev zoo. Kev sib xyaw tsim ua kom yooj yim rau cov kauj ruam layout thaum tuav cov lus qhia zoo ib yam tactile thiab ua haujlwm precision.

2. Cov khoom siv hnyav ua haujlwm ntev. Tsim los ntawm cov yas reinforced thiab industrial-qib hlau, qhov kev hloov no tiv taus cov neeg kho tshuab hnav thiab ib puag ncig kev ntxhov siab. Qhov no ua kom nws tseem ua haujlwm tau zoo hauv kev vibration siab thiab sib txawv ntawm cov tsheb thauj khoom hnyav.

3. Kev sib txuas hluav taws xob meej. Cov kab hluav taws xob sab hauv yog tsim los tshem tawm cov teeb meem xws li kev sib cuag xoob lossis luv luv. Qhov kev sib txuas txhim khu kev qha no ua kom ntseeg tau tias kev nyab xeeb-tseem ceeb ua haujlwm zoo li cov ntsuas thiab cov kab hluav taws xob siab teb tam sim rau cov tswv yim tsav tsheb.

4. Thawj tus qauv sib xws. Ua raws li cov lus qhia meej ntawm Tuam Tshoj Lub Tebchaws Hnyav Tsheb Tsheb Pab Pawg, Kev Sib Txuas Hloov WG9130583017 rau Sinotruk HOWO tso cai rau kev teeb tsa ncaj qha plug-and-play. Tsis muaj kev hloov kho rau cov kab hluav taws xob hauv tsev lossis txuas txuas txuas ntxiv, yuav tsum tau ua kom txo qis kev txij nkawm.

Cov Txheej Txheem Kev Txhim Kho thiab Kev Txhim Kho

Kev Sib Txuas Hloov WG9130583017 rau Sinotruk HOWO yog tsim los rau kev ceev, ncaj nraim installation:

Plug-and-play haum haum.Qhov hloov siv tus thawj connector interface thiab mounting cov ntsiab lus. Tsis muaj kev hloov kho lossis hloov kho bracket yog xav tau thiab tsuas yog tshem tawm lub qub chav tsev thiab nruab qhov hloov.

Cov cuab yeej txheem.Kev txhim kho tsuas yog siv cov cuab yeej siv tes yooj yim xwb.

Tej lub sij hawm installation.Ib tus kws tshaj lij tuaj yeem ua tiav qhov hloov pauv hauv qab 30 feeb.

Cov lus qhia tu.Thaum hloov qhov hloov pauv tsis raug, tshawb xyuas cov hlua txuas txuas rau cov cim qhia ntawm corrosion lossis puas. Ntxuav lub connector pins yog tias tsim nyog ua ntej txhim kho qhov hloov tshiab kom ntseeg tau tias kev sib cuag hluav taws xob zoo.

Skyond lav qhov Zoo li cas?

Txhua Kev Sib Txuas Hloov WG9130583017 rau Sinotruk HOWO muab los ntawm Skyond tau kuaj xyuas ua ntej xa khoom xa tuaj:

Hluav taws xob tiv tauj kuaj.Txhua qhov hloov pauv tau raug sim rau kev txuas mus ntxiv thoob plaws txhua txoj haujlwm hloov, xyuas kom meej tias txhua txoj haujlwm xa cov teeb liab hluav taws xob zoo ib yam.

Mechanical cycling test.Lub lever mechanism yog cycled los ntawm nws tag nrho cov lus tsa suab kom paub tseeb tias kev ua haujlwm zoo thiab kev sib koom ua ke zoo.

Kev kuaj ib puag ncig.Cov qauv random raug kuaj rau qhov kub thiab txias thiab IP65 tiv thaiv dej / plua plav.

Kev kuaj pom.Txhua qhov hloov pauv tau raug tshuaj xyuas rau qhov ua tiav ntawm qhov chaw, cim qhov pom tseeb, thiab kev ua haujlwm zoo.

One-Stop Procurement los ntawm Skyond

Tshaj li Kev Sib Txuas Hloov WG9130583017 rau Sinotruk HOWO, Skyond muab cov khoom siv dav dav rau Sinotruk thiab Shacman series. Peb cov khoom muaj xws li:

Chassis qhov chaw

Nres tshuab

Steering Cheebtsam

Cav qhov chaw

Lim thiab brake pads

Lub cav me me screws ua kom tiav cov rooj sib txoos hauv tsev

Rau cov tuam txhab lag luam thiab cov khw muag khoom, peb muab cov nqi sib tw lag luam wholesale thiab cov kev pabcuam ceev ceev. Ib tus neeg muag khoom, ntau cov khoom lag luam - txo koj cov khoom muag khoom thiab kev xa khoom xa tuaj.

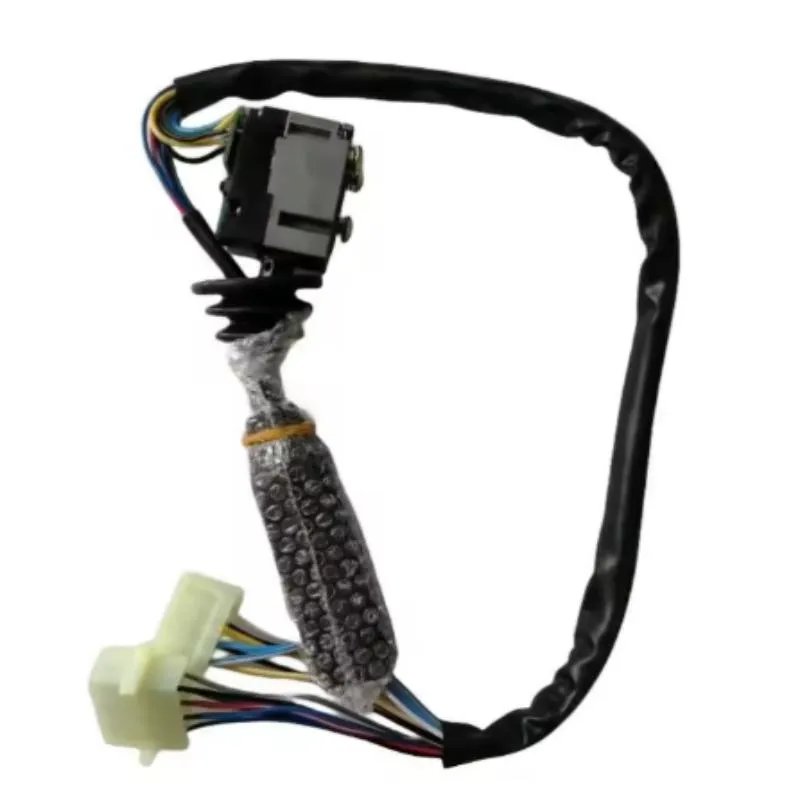

Combination Switch WG9130583017 for Sinotruk HOWO Heavy Duty Truck Accessories

Q&A

Q1: Lub tsheb twg yog Kev Sib Txuas Sib Txuas nrog?

Nws haum rau Sinotruk HOWO A7, T7H, T5G, TX series, thiab STR (Steyr). Nco ntsoov xyuas koj lub tsheb qauv thiab xyoo ua ntej xaj.

Q2: Puas yog qhov hloov pauv no suav nrog kev tswj lub teeb taws?

Yog lawm. Lub Combination Switch integrates pos huab tswj ib sab nrog tig teeb liab, taws teeb, wipers, thiab horn.

Q3: Puas yog qhov hloov pauv ntsaws-thiab-ua si, lossis nws puas yuav tsum tau hloov kho txuas?

Nws yog plug-and-play. Qhov hloov siv tus thawj txuas thiab cov ntsiab lus mounting, yog li tsis muaj kev hloov kho lossis hloov kho bracket yuav tsum tau ua.

Q4: Lub sijhawm lav yog dab tsi?

Skyond muab 3-hli warranty ntawm Kev Sib Txuas Hloov.

Q5: Lub sijhawm khoom xa tuaj ntev npaum li cas?

Feem ntau cov xaj xa tuaj hauv 7-45 hnub tom qab tau txais kev pom zoo.

Q6: Puas yog Skyond muab lwm yam khoom siv hluav taws xob Sinotruk?

Yog lawm. Ntxiv nrog rau kev sib xyaw ua ke, peb muab tag nrho cov khoom siv hluav taws xob Sinotruk. Tiv tauj peb nrog koj cov kev xav tau.

Hu rau Skyond rau Tus Nqi thiab Muaj

Hu rau peb ncaj qha rau cov lus hais tam sim. Peb teb rau tag nrho cov lus nug nyob rau hauv 24 teev nrog cov ncauj lus kom ntxaws pricing, Tshuag paub meej, thiab lub sij hawm xa khoom.

Xov tooj: +86-13065032889

Email: skyond@foxmail.com

Lub Vev Xaib: www.skdtruckparts.com

WhatsApp: +86 15165049196 / +86 19025287746

Peb lees txais kev txiav txim me me thiab loj ib yam. Thov qhia cov khoom code thiab kom muaj nuj nqis thaum tiv tauj peb.
