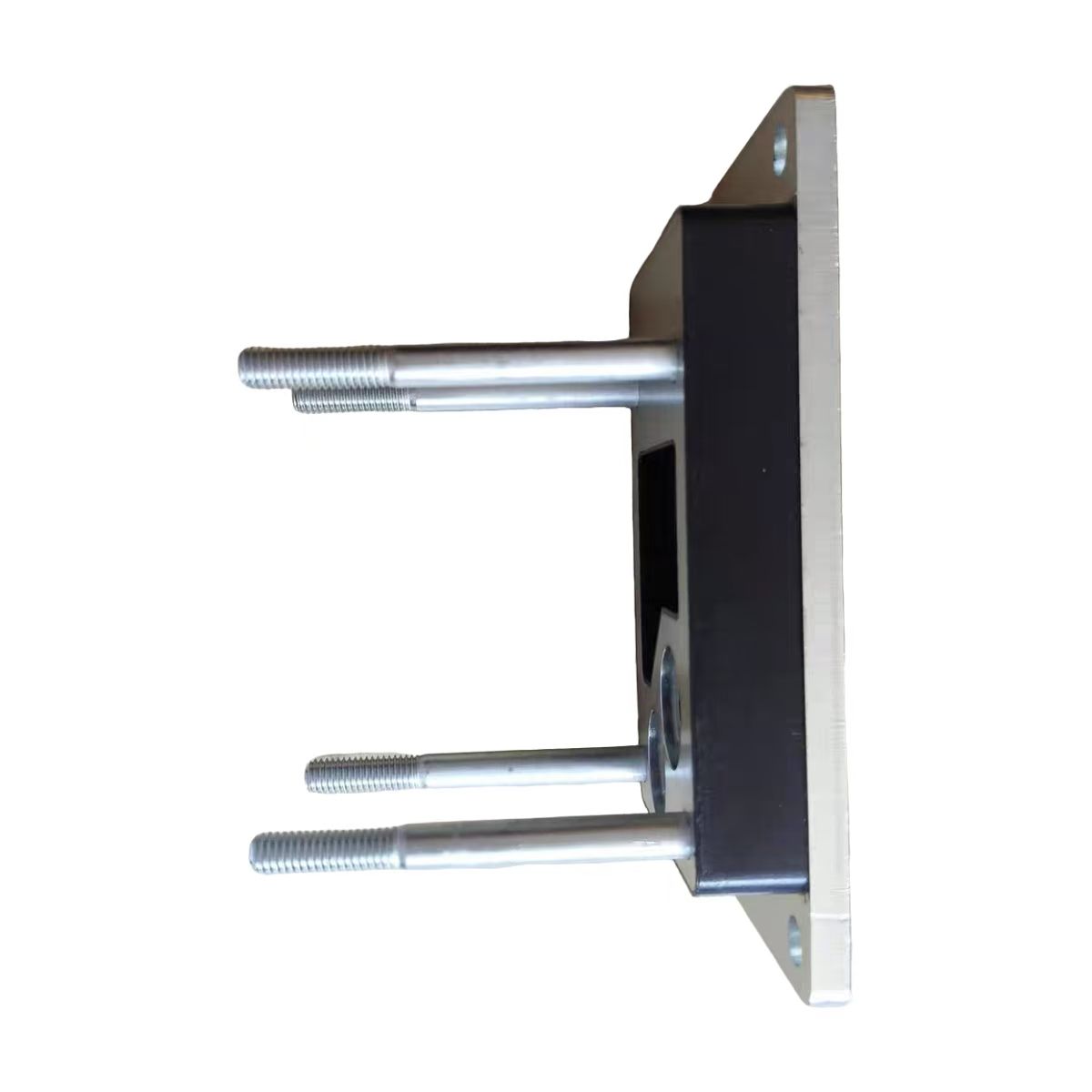

FAST Hydraulic Retarder Damping Phaj rau Shacman Truck

Lub FAST Hydraulic Retarder Damping Phaj rau Shacman Truck yog ib qho kev sib txuas thiab tiv thaiv cov khoom siv los ntawm Skyond, tsim ntawm peb qhov chaw nyob hauv Suav teb. Lub phaj damping no yog tsim los rau lub pneumatic proportional tswj valve ntawm FAST hydraulic retarder systems, feem ntau pom nyob rau hauv Shacman heavy-duty tsheb thauj khoom nrog rau cov X5000, X6000, thiab M3000S series, thiab lwm yam hom uas nruab nrog FAST retarders xws li Sinotruk HOWO, Yutong, thiab Yaxing. Lub Retarder Damping Phaj mounts ncaj qha mus rau lub tswj valve lub cev los ua ke, ruaj lub proportional valve uas tswj huab cua siab nkag mus rau hauv retarder roj sump. Qhov kev tswj lub siab no txiav txim siab cov roj ntws mus rau hauv chav ua haujlwm, uas nyob rau hauv lem tswj braking torque. Ib lub phaj hnav los yog ploj lawm tso cai rau kev co ntau dhau mus txog qhov tseeb valve, ua rau tsis zoo braking, ncua kev koom tes, lossis ua tiav valve tsis ua haujlwm. Hloov nws nrog Retarder Damping Phaj rov ua haujlwm ruaj khov thiab lub zog hydraulic zoo sib xws rau kev nyab xeeb ntawm lub tsheb.

Khoom zoo

Ruaj qhov proportional valve tiv thaiv kev vibration.

Lub FAST Hydraulic Retarder Damping Plate rau Shacman Truck tuav lub electromagnetic proportional valve ruaj khov rau lub cev lub cev. Qhov no tiv thaiv valve txav los yog teeb liab distortion tshwm sim los ntawm txoj kev vibration thiab lub tsheb thaws, kom ntseeg tau tias tus retarder teb tsis tu ncua rau tus tsav tsheb commands.

Extens kev pab cuam lub neej.

Los ntawm absorbing poob siab thiab vibration zog ua ntej nws mus txog lub proportional valve, lub damping phaj txo hnav ntawm lub valve sab hauv cov khoom xws li spool, springs, thiab solenoids. Qhov no txhais tau rau lub sijhawm ua haujlwm ntev dua thiab tsawg dua qhov hloov pauv ntawm lub tsheb lub neej.

Composite hlau-rubber tsim.

Cov hlau phaj muab cov mounting nruj thiab meej qhov chaw ntawm lub valve, thaum cov roj hmab sib khi txheej absorbs high-frequency kev co. Qhov kev tsim qauv sib xyaw no tshem tawm qhov xav tau rau kev sib cais mounting brackets thiab cais tawm, ua kom yooj yim rau kev sib dhos valve thiab txo cov ntsiab lus tsis ua haujlwm.

Khaws tus retarder qhov tseem ceeb braking zoo.

Lub valve ruaj khov tso cai rau tus retarder xa nws tag nrho braking muaj peev xwm hnav-dawb deceleration, kev ua haujlwm zoo ib yam tsis muaj thermal ploj, thiab txo qis ntawm cov kev pabcuam nres thiab cov log tsheb. Rau cov neeg tsav nkoj, qhov no txhais tau tias txo tus nqi kho thiab txhim kho roj kev lag luam.

Direct OEM hloov.

Lub qhov mounting, phaj thickness, thiab tag nrho qhov ntev sib phim cov khoom qub specifications. Kev teeb tsa yuav tsum tsis muaj kev hloov kho rau lub cev valve lossis cov khoom nyob ib puag ncig.

Ntsiab Specifications

Lub luag haujlwm ntawm Damping yog dab tsi?

Lub FAST Hydraulic Retarder Damping Phaj rau Shacman Truck ua haujlwm peb lub luag haujlwm tseem ceeb hauv kev tswj xyuas qhov rov qab:

Kev ruaj ntseg mounting. Lub phaj bolts lub electromagnetic proportional valve nrees mus rau lub retarder valve lub cev. Qhov kev kho kho tshuab no tiv thaiv lub valve los ntawm kev hloov lossis xoob hauv lub tsheb kev co, tswj xyuas qhov kev sib raug zoo ntawm lub valve thiab nws cov pneumatic thiab hluav taws xob sib txuas.

Kev vibration damping.Cov roj hmab sib xyaw ua ke absorbs thiab dissipates poob siab thiab vibration zog ntawm txoj kev thiab tsav tsheb. Yog tias tsis muaj qhov damping no, kev vibration yuav xa ncaj qha mus rau lub valve lub sab hauv cov spool, springs, thiab solenoids ua rau ntxov ntxov hnav, erratic teb, los yog ua tsis tiav.

Kev tiv thaiv kev ruaj ntseg.Los ntawm kev sib cais lub valve los ntawm kev vibration, Retarder Damping Plate tiv thaiv cov teeb liab tsis tseeb lossis teeb liab cuam tshuam los ntawm kev mus txog chav tswj hluav taws xob. Lub proportional valve tso siab rau cov teeb liab hluav taws xob los ntawm ECU los tswj cov cua siab. Kev vibration-induced hu bounce los yog sib cuam tshuam kev sib txuas tuaj yeem ua rau ECU los txhais lub valve tsis raug, ua rau tsis raug kev siv braking torque.

Rau tus neeg tsav tsheb, qhov no txhais tau hais tias qhov kev xav tau, cov lus teb nres nres thoob plaws txhua hom kev ua haujlwm rov qab los ntawm kev ua haujlwm tsis tu ncua ntawm qhov nrawm mus rau kev sib koom ua ke tag nrho.

Hais txog Kev Tsim Khoom Siv

Qhov Retarder Damping Phaj no muaj kev sib xyaw ua ke: carbon steel Q235 phaj sib koom ua ke rau cov roj hmab damping txheej.

Carbon steel Q235 phaj.Cov txheej txheem qib steel no muab cov rigidity xav tau kom ruaj ntseg mount lub proportional valve. Nws resists dabtsi yog khoov thiab deformation nyob rau hauv lub clamping quab yuam ntawm lub mounting bolts thiab vibration loads los ntawm lub tsheb. Lub phaj steel tuav lub valve qhov kev taw qhia meej txheeb ze rau lub cev valve, kom ntseeg tau tias kev sib txuas pneumatic thiab hluav taws xob nyob twj ywm.

Roj hmab damping txheej.Cov txheej elastomer absorbs high-frequency vibration zog thiab converts nws mus rau tshav kub, uas yog dissipated los ntawm lub phaj. Cov roj hmab sib xyaw no yog tsim los tswj hwm nws cov khoom damping thoob plaws qhov kub thiab txias uas tau ntsib hauv cov tsheb thauj khoom hnyav los ntawm txias pib thaum lub caij ntuj no mus rau cov cua sov los ntawm cov txheej txheem retarder thaum lub sij hawm ntev.

Composite tsim kom zoo dua.Los ntawm kev sib txuas cov hlau thiab roj hmab rau hauv ib chav tsev, lub phaj damping muab ob qho tib si mounting thiab vibration cais nyob rau hauv ib tug compact tivthaiv. Qhov no tshem tawm qhov kev xav tau ntawm kev sib cais mounting brackets thiab roj hmab cais tawm, ua kom yooj yim rau kev sib dhos valve thiab txo cov ntsiab lus tsis ua haujlwm.

Tau tshaj Retarder qauv thiab daim ntawv thov tsheb

Lub FAST Hydraulic Retarder Damping Phaj rau Shacman Truck yog sib xws nrog ntau yam ntawm FAST hydraulic retarder qauv:

1. FH400B (series txuas). Mounts nyob rau hauv-kab nrog cov kis tau tus mob, haum rau cov tsheb qhov chaw tso cai rau series installation.

2. FH240B. Ib tug compact series-kev sib txuas qauv rau qis horsepower daim ntaub ntawv.

3. FHB320B (kev sib txuas ua ke). Mounts nrog rau kev sib kis, khaws cia lub hwj chim tawm (PTO) interface.

4. FHB400B. Tus qauv muaj peev xwm ntau dua kev sib txuas.

Cov qauv retarder no yog lub Hoobkas-tsim lossis tus neeg muag khoom-ntsia ntawm:

1. Shacman X5000, X6000, M3000S, thiab lwm yam Shacman hnyav tsheb thauj khoom

2. Sinotruk HOWO series

3. Yutong thiab Yaxing cov tsheb npav thiab cov kws qhia

4. Lwm hom tsheb lag luam uas siv FAST retarders

Rau kev cob qhia thiab cov neeg tsav nkoj, Retarder Damping Plate muab ib qho SKU uas suav nrog ntau tus qauv retarder thiab kev siv tsheb, ua kom yooj yim rau kev tswj cov khoom muag.

Kev txhim kho thiab tu

Hloov Retarder Damping Phaj yuav tsum tau saib xyuas kom meej:

Professional installation pom zoo

Kev ua haujlwm suav nrog disassembling lub retarder tswj valve lub cev. Peb pom zoo kom tus kws tshaj lij nrog FAST retarder kev pabcuam ua haujlwm hloov.

Torque specification

Mounting bolts yuav tsum tau nruj rau lub torque teev uas siv lub torque ciaj ntswj. Tshaj-tightening tuaj yeem ua rau lub cev valve lossis damping phaj; under-tightening tso cai rau txav thiab vibration.

Tshawb xyuas cov khoom sib txuas

Nrog lub valve tshem tawm, xyuas cov proportional valve nws tus kheej rau kev puas tsuaj. Tshawb xyuas O-ring foob rau hardness, tawg, lossis deformation, thiab hloov yog tias tsim nyog.

Kev kuaj ua haujlwm tom qab kev teeb tsa

Tom qab reassembly, sim lub retarder los ntawm tag nrho cov kev khiav hauj lwm hom tsis tu ncua ceev, thiab txhua theem braking kom paub meej tias ib txwm braking quab yuam thiab tsis muaj huab cua los yog roj.

Feem ntau cov kev teeb tsa tuaj yeem ua tiav hauv ib teev los ntawm ib tus kws tshaj lij.

Skyond tswj thiab ntsuas qhov zoo li cas?

Txhua FAST Hydraulic Retarder Damping Phaj rau Shacman Truck muab los ntawm Skyond raug tshuaj xyuas ua ntej xa khoom xa tuaj:

Kev txheeb xyuas qhov ntev.Lub phaj mounting qhov chaw, thickness, thiab tag nrho qhov ntev yog soj ntsuam tiv thaiv OEM specifications los xyuas kom meej haum haum.

Roj hmab daim ntawv cog lus kev ncaj ncees. Cov txheej roj hmab raug tshuaj xyuas kom muaj kev sib raug zoo rau cov hlau phaj, tsis muaj qhov khoob lossis sib cais.

Nto tiav.Cov phaj hlau raug kuaj xyuas rau cov burrs, cov npoo ntse, lossis corrosion uas tuaj yeem cuam tshuam rau kev teeb tsa lossis kev pabcuam lub neej.

Kev sim ua qauv. Random qauv los ntawm txhua batch yog raug rau compression thiab vibration xeem los xyuas kom meej damping kev ua tau zoo.

Advanced Manufacturing ntawm Skyond

Skyond ua haujlwm niaj hnub tsim khoom nruab nrog precision machinery thiab automated ntau lawm kab. Peb lub Hoobkas muaj peev xwm ua tau FAST Hydraulic Retarder Damping Plate rau Shacman Truck thiab lwm yam precision Cheebtsam kom zoo ib yam li cov qauv.

Precision CNC machining. Peb cov cuab yeej CNC tswj kev txiav thiab tsim cov khoom hlau kom meej meej. Rau cov phaj damping, qhov no ua kom muaj qhov tseeb qhov chaw mounting qhov chaw, zoo ib yam phaj thickness, thiab haum haum rau lub valve lub cev. Dimensional raug ncaj qha cuam tshuam rau installation yooj yim thiab lub phaj lub peev xwm los tswj lub valve nyob rau hauv kev co.

Automated sib dhos thiab tswj kom zoo. Cov txheej txheem automated txo tib neeg kev ua yuam kev thiab ua kom muaj kev sib raug zoo ntawm kev tsim khoom. Txhua batch tau soj ntsuam ntawm ntau theem, los ntawm cov ntaub ntawv pov thawj raw khoom mus rau kev xeem cov khoom tiav.

Dedicated roj hmab bonding kab. Cov roj hmab damping txheej yog sib koom ua ke rau cov phaj hlau siv cov txheej txheem tswj xyuas kom muaj qhov adhesion zoo yam tsis muaj voids lossis delamination. Qhov kev sib koom ua ke no yog qhov tseem ceeb rau lub phaj kev co-damping kev ua haujlwm dhau nws lub neej kev pab cuam.

Cov khoom siv kuaj. Cov cuab yeej ntsuas qhov tseeb siab thiab cov ntsuas hluav taws xob tshawb xyuas cov khoom ua tau zoo raws li kev ua haujlwm simulated. Random kuaj los ntawm txhua batch yog raug rau compression thiab vibration xeem kom paub meej tias damping yam ntxwv raws li specifications.

Muaj peev xwm ntau lawm. Peb lub chaw txhawb nqa loj-loj ntau lawm kom tau raws li kev txiav txim ntau thaum tswj xyuas qhov zoo ib yam. Rau cov neeg tsav nkoj thiab cov tuam txhab lag luam uas xav tau ntim khoom xa tuaj, peb tuaj yeem ntsuas cov khoom raws li.

Kev xa khoom thoob ntiaj teb thiab Logistics

Skyond xa tawm mus rau Russia, Central Asia, Southeast Asia, Africa, South America, thiab lwm thaj chaw. Peb pab neeg logistics tuav:

1. Lub thawv ntim khoom nrog kev ruaj ntseg kom zoo los tiv thaiv kev puas tsuaj hauv kev thauj mus los

2. Cov ntaub ntawv kev lis kev cai rau kev tshem tawm du

3. Kev xa mus rau cov chaw nres nkoj loj rau kev xa khoom thoob ntiaj teb zoo

Feem ntau cov kev txiav txim rau FAST Hydraulic Retarder Damping Plate rau Shacman Truck nkoj hauv 7-45 hnub tom qab kev pom zoo them nyiaj. Rau cov neeg siv khoom uas yuav tsum tau ua tsis tu ncua, peb tuaj yeem npaj cov khoom xa tuaj lossis khaws cov khoom muag ntawm cov chaw xa khoom xa mus sai.

Cov Lus Nug

Q1: Dab tsi ntawm cov lej sib haum rau lub phaj damping no?

Cov phaj damping muaj xws li HB400-60003 thiab HB400-60002. Qhov ua tiav qhov sib npaug ntawm qhov sib dhos nrog damping phaj yog HB400-60001.

Q2: Kuv yuav ua li cas thiaj paub tseeb tias qhov damping phaj haum rau kuv lub tsheb?

Txheeb xyuas tus qauv retarder ntawm daim ntawv cim npe ntawm lub cev retarder. Cov qauv sib xws suav nrog FH400B, FH240B, FHB320B, thiab FHB400B. Xwb, muab koj lub tsheb VIN rau koj tus neeg muag khoom kom muaj qhov sib txuam hauv FAST lossis Shacman cov khoom siv hluav taws xob.

Q3: Kuv yuav hloov dab tsi nrog rau lub phaj damping?

Tshawb xyuas qhov proportional valve rau kev puas tsuaj. Tshawb xyuas O-ring foob rau kev laus lossis hnav, thiab hloov nws yog tias tsim nyog.

Q4: Kuv puas tuaj yeem nruab qhov no rau kuv tus kheej?

Kev ua haujlwm suav nrog kev tswj xyuas lub cev rov qab. Peb pom zoo rau kev teeb tsa los ntawm tus kws tshaj lij nrog FAST retarder kev pabcuam los xyuas kom meej qhov tseeb torque thiab kev ua haujlwm.
